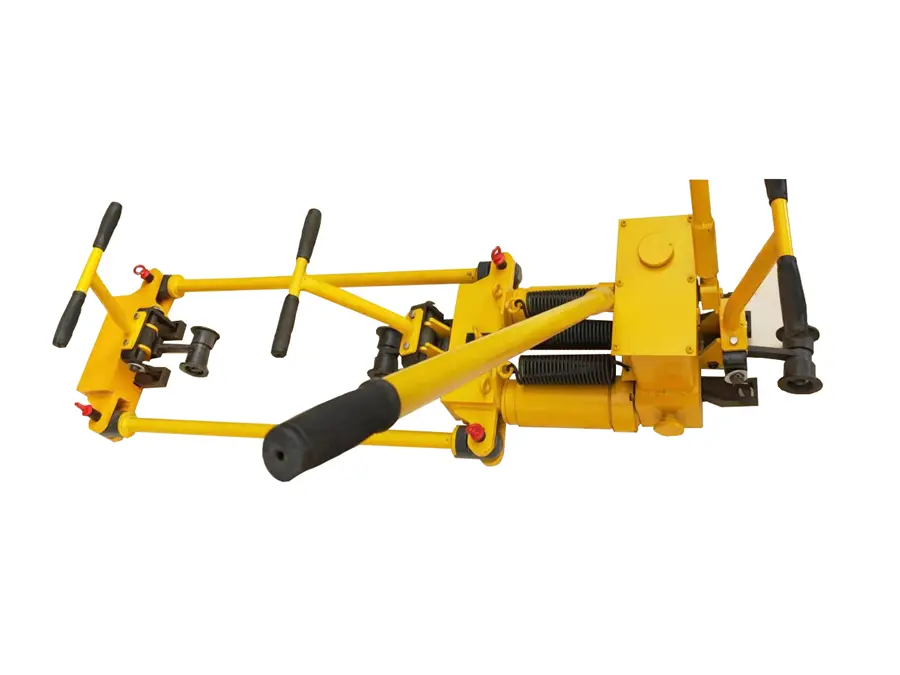

High-Capacity Bidirectional Rail Joint Adjuster
Detailed Description of the Product
-
Detailed Description
The Bidirectional Rail Joint Adjuster is engineered to deliver exceptional performance in railway maintenance and track alignment applications. Whether used for adjusting rail joints, correcting misalignments, or performing track repairs, this device combines high hydraulic power with precise control to ensure efficient and safe operations.
-
Key Specifications
- Maximum Thrust and Tension: 400 kN- Maximum Stroke of Working Hydraulic Cylinder: 180 mm- Working Hydraulic Pressure: 52 MPa- Piston Movement Distance per Working Cycle of the Pump Plunger:- When a pair of plungers are working: 1.5 mm- When two pairs of plungers are working: 3 mm- Maximum Operating Force: 320 kN- Maximum Rail Joint Adjustment Without Moving Fixture: 140 mm- Dimensions: 1200×360×290 mm- Mass: 105 kg
-
Powerful and Efficient Hydraulic System
This rail joint adjuster is equipped with a high-capacity hydraulic system capable of generating a maximum thrust and tension of 400 kN, ensuring it can handle even the most demanding track adjustments. The working hydraulic pressure of 52 MPa guarantees consistent performance under heavy loads, while the maximum stroke of 180 mm provides ample range for precise alignment.The pump plunger system is designed for efficiency, with a piston movement distance of 1.5 mm when a single pair of plungers is active and 3 mm when two pairs are engaged. This dual-piston configuration allows for faster adjustments and improved operational speed, reducing downtime during maintenance tasks.
-
Versatile and Compact Design
With dimensions of 1200×360×290 mm and a mass of 105 kg, this bidirectional rail joint adjuster is compact and lightweight enough for easy transportation and deployment. Its bidirectional functionality enables adjustments in both directions without repositioning the device, saving time and effort.The maximum rail joint adjustment of 140 mm without moving the fixture ensures efficient corrections, even in tight spaces. This capability is particularly valuable in railway maintenance, where minimizing disruption to service is critical.
-
Applications
This bidirectional rail joint adjuster is ideal for:- Railway Maintenance: Adjusting rail joints and correcting misalignments.- Track Construction: Ensuring precise track positioning during new installations.- Emergency Repairs: Quickly addressing track issues to restore service.- Heavy-Duty Applications: Handling demanding adjustments in industrial rail systems.
-
Why Choose This Rail Joint Adjuster?
- High Capacity: Delivers 400 kN thrust and tension for heavy-duty adjustments.- Efficient Hydraulic System: Optimized for speed and precision with dual-piston functionality.- Compact and Portable: Easy to transport and deploy in various track environments.- Versatile Use: Suitable for maintenance, construction, and emergency repairs.
