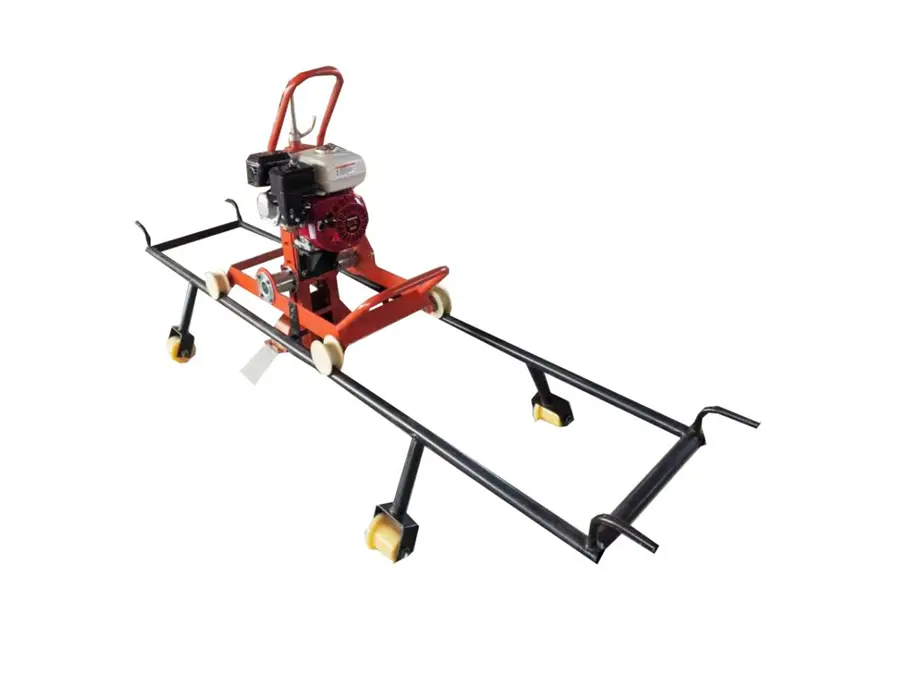

Internal Combustion Switch Grinding Machine

- Engine Type: Four-stroke Honda engine

- Power Output: 6.5 horsepower

- RPM: 3600 rpm

This internal combustion switch grinding machine is powered by a 6.5 horsepower four-stroke Honda engine, delivering reliable and consistent power for demanding grinding tasks. The 3600 rpm grinding wheel speed allows for quick and efficient removal of rail material, optimizing the grinding process and reducing downtime. The Honda engine is known for its durability, low maintenance, and long-lasting performance.

- Grinding Wheel Speed: 4100 rpm

- Grinding Wheel Specifications: φ254×φ30×35 mm (disc-shaped grinding wheel)

The 4100 rpm grinding wheel speed provides high-performance grinding that ensures clean and precise cuts. The disc-shaped grinding wheel with dimensions of φ254×φ30×35 mm is designed to withstand high levels of wear and tear while maintaining efficiency throughout the grinding process.

- Grinding Head Tilt Adjustment Range: ±30°

- Vertical Travel of Grinding Head: 170 mm

The ±30° tilt adjustment range of the grinding head provides flexibility in adapting to various grinding positions and requirements, making it ideal for different track switch profiles. The 170 mm vertical travel enables thorough grinding across the rail, ensuring an even surface and proper profile for smooth train operations.

- Total Machine Weight: 90 kg

- Dimensions: 2920×850×1150 mm

Despite its powerful engine and extensive grinding capabilities, the machine is designed to be relatively compact and portable. Weighing 90 kg and measuring 2920×850×1150 mm, it can be easily maneuvered and transported to various work sites, ensuring convenience and efficiency for maintenance teams.

1. Powerful Honda Engine: Provides consistent, reliable performance with 6.5 horsepower and 3600 rpm.

2. High-Speed Grinding: 4100 rpm wheel speed ensures quick and efficient grinding of rail switches.

3. Adjustable Grinding Head: The ±30° tilt angle adjustment and 170 mm vertical travel offer versatility for precise grinding at different angles.

4. Durable and Efficient Grinding Wheel: The φ254×φ30×35 mm disc-shaped wheel ensures long-lasting performance under heavy-duty conditions.

5. Portable and Easy to Use: With a weight of 90 kg and compact design, it is easy to transport and operate on-site.
